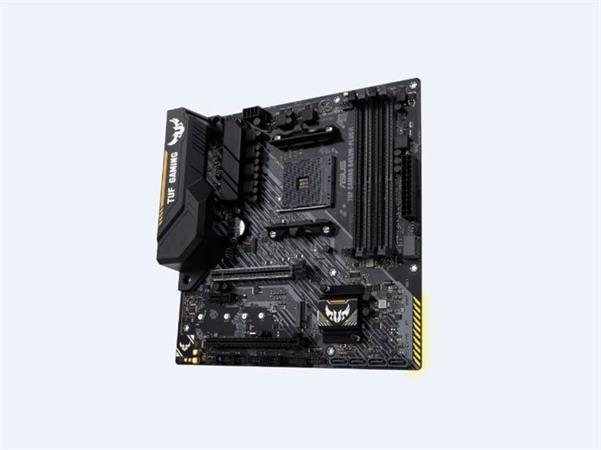

ASUS TUF GAMING B450M-PLUS II

• Procesor

• AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors *

• * Refer to www.asus.com for CPU support list

• Čipová sada

• AMD B450

• Operační paměť

• 3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors

• 4 x DIMM, Max. 128GB, DDR4 4400(O.C)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3533(O.C)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory *

• Dual Channel Memory Architecture

• ECC Memory (ECC mode) support varies by CPU.

• * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

• * The maximum memory frequency supported varies by processor.

• Grafická karta

• Integrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors

• 1 x HDMI™ port

• 1 x DVI-D

• *Graphics specifications may vary between CPU types.

• Podpora více grafických procesorů

• Supports AMD 2-Way CrossFireX Technology

• Rozšiřující sloty

• 3rd/2nd/1st Gen AMD Ryzen™ Processors

• 1 x PCIe 3.0/2.0 x16 (x16 mode)

• 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors

• 1 x PCIe 3.0/2.0 x16 (x8 mode)

• Athlon™ with Radeon™ Vega Graphics Processors

• 1 x PCIe 3.0/2.0 x16 (max at x4 mode)

• AMD B450 chipset

• 1 x PCIe 2.0 x16 (x4 mode)

• 1 x PCIe 2.0 x1

• Úložný prostor

• Total supports 1 x M.2 slot(s) and 6 x SATA 6Gb/s ports

• 3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics :

• 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support*1

• Athlon™ with Radeon™ Vega Graphics Processors :

• 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode)*1

• 3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors :

• 2 x SATA 6Gb/s port(s),

• Support Raid 0, 1, 10

• AMD B450 chipset :

• 4 x SATA 6Gb/s port(s),

• Support Raid 0, 1, 10

• LAN

• Realtek RTL8111H 1Gb Ethernet

• TUF LANGuard

• Zvuk

• Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC

• Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback

• Audio Feature :

• Exclusive DTS Custom for GAMING Headsets.

• Audio cover

• Audio Shielding

• Dedicated audio PCB layers

• Premium Japanese audio capacitors

• USB Porty

• Rear USB Port ( Total 6 )

• 1 x USB 3.2 Gen 2 port(s)(1 x Type-A)

• 3 x USB 3.2 Gen 1 port(s)(2 x Type-A +1 x Type-C)

• 2 x USB 2.0 port(s)(2 x Type-A)

• Front USB Port ( Total 6 )

• 2 x USB 3.2 Gen 1 port(s)(2 x Type-A)

• 4 x USB 2.0 port(s)(4 x Type-A)

• Softwarových funkcí

• ASUS Exclusive Software

• Armoury Crate

• Aura Creator

• Aura Sync

• AI Noise-Canceling Microphone

• AI Suite 3

• Performance And Power Saving Utility

• TurboV EVO

• EPU

• Digi+ VRM

• Fan Xpert 2+

• EZ update

• PC Cleaner

• TUF GAMING CPU-Z

• AI Charger

• ASUS Turbo LAN

• DAEMON Tools

• DTS Custom for GAMING Headsets

• Norton Anti-virus software (Free Trial for 60 days)

• WinRAR

• UEFI BIOS

• ASUS EZ DIY

• ASUS CrashFree BIOS 3

• ASUS EZ Flash 3

• ASUS UEFI BIOS EZ Mode

• Speciální funkce ASUS

• ASUS TUF PROTECTION

• ASUS DIGI+ VRM

• ASUS Enhanced DRAM Overcurrent Protection

• ASUS ESD Guards

• TUF LANGuard

• ASUS Overvoltage Protection

• ASUS SafeSlot

• ASUS Stainless-Steel Back I/O

• ASUS Q-Design

• ASUS Q-DIMM

• ASUS Q-Slot

• ASUS Thermal Solution

• Aluminum heatsink design

• ASUS EZ DIY

• BIOS FlashBack™ button

• BIOS FlashBack™ LED

• AURA Sync

• AURA RGB header

• Zadní vstupy a výstupy

• 1 x PS/2 keyboard/mouse combo port(s)

• 1 x DVI-D

• 1 x HDMI

• 1 x LAN (RJ45) port(s)

• 1 x USB 3.2 Gen 2 (teal blue)Type-A,

• 2 x USB 3.2 Gen 1 (blue) Type-A

• 1 x USB 3.2 Gen 1 (black) Type-C

• 2 x USB 2.0

• 3 x Audio jack(s)

• 1 x BIOS FlashBack™ Button(s)

• Vnitřní vstupy a výstupy

• 1 x CPU Fan connector(s)

• 2 x Chassis Fan connector(s)

• 1 x Aura RGB Strip Header

• 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)

• 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

• 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)

• 1 x SPI TPM header

• 6 x SATA 6Gb/s connector(s)

• 1 x S/PDIF out header(s)

• 1 x 24-pin EATX Power connector(s)

• 1 x 8-pin EATX 12V Power connectors

• 1 x Front panel audio connector(s) (AAFP)

• 1 x Clear CMOS jumper(s)

• 1 x System panel connector

• 1 x COM port header

• 1 x Speaker connector

• Příslušenství

• User's manual

• I/O Shield

• 2 x SATA 6Gb/s cable(s)

• 1 x Supporting DVD

• 1 x TUF Gaming Sticker

• 1 x TUF Certification card(s)

• 1 x M.2 SSD screw package(s)

• BIOS

• 256 Mb Flash ROM, UEFI AMI BIOS

• Manageability

• WOL by PXE

• Operační systém

• Windows® 10 64-bit

• Windows® 7 64-bit *2

• Formát

• mATX Form Factor

• 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )

• Poznámka

• *1 The M.2 slot shares bandwidth with the SATA_5/6 ports, and therefore the SATA_5/6 ports cannot be used when an M.2 device is installed.

• *2 To support Windows 7 64-bit, please install an AMD Ryzen™ 2nd Generation or Ryzen™ 1st Generation Processor.

• Váha: 1.10000 kg
• PartNumber: 90MB1620-M0EAY0
