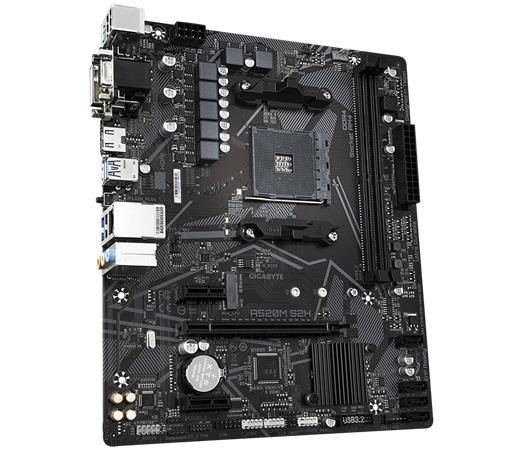

GIGABYTE MB Sc AM4 A520M S2H, AMD A520, 2xDDR4, 1xHDMI, 1xDVI, VGA, mATX

• CPU

• AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ 3rd Gen Ryzen™ and 3rd Gen Ryzen™ with Radeon™ Graphics Processors

• (Please refer "CPU Support List" for more information.)

• Chipset

• AMD A520

• Memory

• 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory

• 3rd Gen AMD Ryzen™ Processors:

• Support for DDR4 5100(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules

• 3rd Gen AMD Ryzen™ with Radeon™ Graphics processors:

• Support for DDR4 5100(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules

• Dual channel memory architecture

• Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules

• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

• Support for Extreme Memory Profile (XMP) memory modules

• (Please refer "Memory Support List" for more information.)

• Onboard Graphics

• Integrated in the 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors:

• 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz

• 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz

• * The DVI-D port does not support D-Sub connection by adapter.

• 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

• * Support for HDMI 2.1 version, HDCP 2.3, and HDR.

• Support for up to 3 displays at the same time

• Maximum shared memory of 16 GB

• Audio

• Realtek® ALC887 codec

• High Definition Audio

• 2/4/5.1/7.1-channel

• * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.

• LAN

• Realtek® GbE LAN chip (1000 Mbit/100 Mbit)

• Expansion Slots

• CPU:

• 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16

• Chipset:

• 2 x PCI Express x1 slots, supporting PCIe 3.0

• Storage Interface

• CPU:

• 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)

• Chipset:

• 4 x SATA 6Gb/s connectors

• Support for RAID 0, RAID 1, and RAID 10

• USB

• CPU:

• 4 x USB 3.2 Gen 1 ports on the back panel

• Chipset:

• 2 x USB 3.2 Gen 1 ports available through the internal USB header

• 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

• Internal I/O Connectors

• 1 x 24-pin ATX main power connector

• 1 x 8-pin ATX 12V power connector

• 1 x CPU fan header

• 2 x system fan headers

• 1 x addressable LED strip header

• 1 x RGB LED strip header

• 1 x M.2 Socket 3 connector

• 4 x SATA 6Gb/s connectors

• 1 x front panel header

• 1 x front panel audio header

• 1 x USB 3.2 Gen 1 header

• 2 x USB 2.0/1.1 headers

• 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)

• 1 x serial port header

• 1 x speaker header

• 1 x chassis intrusion header

• 1 x Clear CMOS jumper

• Back Panel Connectors

• 1 x PS/2 keyboard/mouse port

• 1 x D-Sub port

• 1 x DVI-D port

• 1 x HDMI port

• 4 x USB 3.2 Gen 1 ports

• 2 x USB 2.0/1.1 ports

• 1 x RJ-45 port

• 1 x Q-Flash Plus button

• 3 x audio jacks

• I/O Controller

• iTE® I/O Controller Chip

• H/W Monitoring

• Voltage detection

• Temperature detection

• Fan speed detection

• Overheating warning

• Fan fail warning

• Fan speed control

• * Whether the fan speed control function is supported will depend on the fan you install.

• BIOS

• 1 x 128 Mbit flash

• Use of licensed AMI UEFI BIOS

• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

• Unique Features

• Support for APP Center

• * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

• @BIOS

• EasyTune

• Fast Boot

• Game Boost

• ON/OFF Charge

• RGB Fusion

• Smart Backup

• System Information Viewer

• Support for Q-Flash Plus

• Support for Q-Flash

• Support for Xpress Install

• Bundled Software

• Norton® Internet Security (OEM version)

• Realtek® 8118 Gaming LAN Bandwidth Control Utility

• Operating System

• Support for Windows 10 64-bit

• Form Factor

• Micro ATX Form Factor; 24.4cm x 20.5cm

• Váha: 0.50000 kg
• PartNumber: A520M S2H

Parametry produktu

Socket/patice:	AM4
Typ paměti:	DDR4
