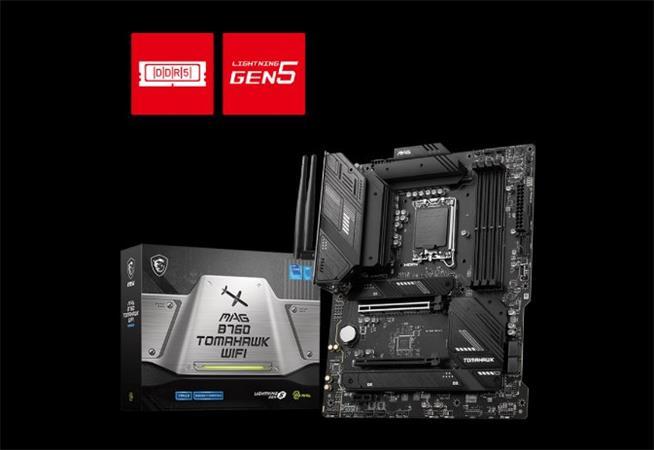

MSI MAG B760 TOMAHAWK WIFI, 1700, Intel B760, 4xDDR5, ATX + doprava zdarma

• Supports 12th/ 13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket

• Supports DDR5 Memory, up to 7000+(OC) MHz

• Enhanced Power Design: 12+1+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost

• Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2

• Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works

• AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience

• High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material

• CHIPSET INTEL B760

• CPU SUPPORT Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors

• LGA1700

• MEMORY 4x DDR5, Maximum Memory Capacity 192GB

• Memory Support 7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz

• Max. overclocking frequency:

• 1DPC 1R Max speed up to 7000+ MHz

• 1DPC 2R Max speed up to 6600+ MHz

• 2DPC 1R Max speed up to 6400+ MHz

• 2DPC 2R Max speed up to 5600+ MHz

• Supports Dual-Channel mode

• Supports non-ECC, un-buffered memory

• Supports Intel® Extreme Memory Profile

• ONBOARD GRAPHICS 1x HDMI™

• Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz*

• 1x DisplayPort

• Support DP 1.4, maximum resolution of 8K 60Hz*

• *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

• EXPANSION SLOT 2x PCI-E x16 slot

• Supports x16/x4

• 1x PCI-E x1 slot

• PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)

• PCI_E2 Gen PCIe 3.0 supports up to x4 (From Chipset)

• PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset)

• STORAGE 3x M.2

• M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices

• M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices

• M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices

• 4x SATA 6G

• RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

• USB 4x USB 2.0 (Rear)

• 4x USB 2.0 (Front)

• 2x USB 3.2 Gen1 Type A (Front)

• 4x USB 3.2 Gen2 Type A (Rear)

• 1x USB 3.2 Gen2 Type C (Front)

• 1x USB 3.2 Gen2x2 Type C (Rear)

• LAN Realtek® 2.5Gbps LAN

• WIRELESS / BLUETOOTH Intel® Wi-Fi 6E

• The Wireless module is pre-installed in the M.2 (Key-E) slot

• Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps

• Supports 802.11 a/ b/ g/ n/ ac/ ax

• Supports Bluetooth® 5.3, FIPS, FISMA

• * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.

• ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

• AUDIO Realtek® ALC897 Codec

• 7.1-Channel USB High Performance Audio

• Supports S/PDIF output

• INTERNAL I/O 1x Power Connector(ATX_PWR)

• 2x Power Connector(CPU_PWR)

• 1x CPU Fan

• 1x Pump Fan

• 5x System Fan

• 2x Front Panel (JFP)

• 1x Chassis Intrusion (JCI)

• 1x Front Audio (JAUD)

• 1x TBT connector (JTBT, supports RTD3)

• 1x Tuning Controller connector(JDASH)

• 2x Addressable V2 RGB LED connector (JARGB_V2)

• 2x RGB LED connector(JRGB)

• 1x TPM pin header(Support TPM 2.0)

• 4x USB 2.0 ports

• 2x USB 3.2 Gen1 Type A ports

• 1x USB 3.2 Gen2 Type C ports

• LED FEATURE 4x EZ Debug LED

• BACK PANEL PORTS

• USB 2.0

• DisplayPort 1.4

• USB 3.2 Gen 2 10Gbps Type-A

• 2.5G LAN Port

• Wi-Fi / Bluetooth Antenna

• HD Audio Connectors

• HDMI™ 2.1 Port

• USB 3.2 Gen 2x2 20Gbps Type-C

• Optical S/PDIF OUT

• OPERATING SYSTEM Support for Windows® 11 64-bit, Windows® 10 64-bit

• PCB DIMENSION ATX

• 243.84mmx304.8mm

• Váha: 1.10000 kg
• PartNumber: MAG B760 TOMAHAWK WIFI

Parametry produktu

GPSR:	MICRO-STAR INTERNATIONAL CO., LTD.;Areal Slatina, Green Building, Tuřanka 115,627 00,Brno,Česká republika;cz-fae@msi.com
Socket/patice:	1700
Typ paměti:	DDR5
Výrobce:	MSI
