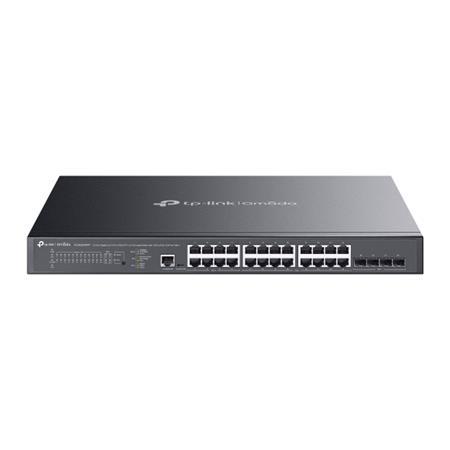

TP-Link SG3428XMPP Omada 24portový gigabitový a 4portový 10GE SFP+ Managed switch L2+ s 16 porty PoE+ a 8 porty PoE++ + doprava zdarma

• 4× 10 Gbps SFP+ sloty

• 8× Gigabitové 802.af/at/bt PoE++ porty (Maximální PoE rozpočet 90 W na každý port)

• 16× Gigabitové 802.3af/at PoE+ porty (Maximální rozpočet 30 W na každý port)

• Celkový PoE rozpočet 500 W*

• Centralizovaná správa v cloudu přes web nebo aplikaci Omada†

• Samostatná správa přes web, CLI, SNMP a RMON

• Statické směrování, VLAN, ACL, QoS, IGMP Snooping, OAM a DDM

• ERPS podporuje rychlou ochranu a obnovu v prstencové topologii

• Odolné kovové pouzdro a design pro montáž do racku

• Parametry

• HARDWARE FEATURES

• Interface

• 24× 10/100/1000 Mbps RJ45 Ports (8× PoE++, 16× PoE+)

• 4× 10G SFP+ Slots

• 1× RJ45 Console Port

• 1× Micro-USB Console Port

• Fan Quantity 3

• Physical Security Lock OK

• Power Supply 100-240 V AC~50/60 Hz

• PoE Ports (RJ45)

• Standard: 802.3at/af/bt compliant

• PoE++ Ports: Ports 1~8 (up to 90 W PoE Output per Port)

• PoE+ Ports: Ports 9~24 (up to 30 W PoE Output per Port)

• Power Budget: 500 W

• Dimensions ( W x D x H ) 17.3×13.0×1.7 in (440×330×44 mm)

• Mounting Rack Mountable

• Max Power Consumption 605.5W (110V/60Hz) ( with 500W PD connected)

• Max Heat Dissipation 2064.96 BTU/hr (110 V/60 Hz) (with 500W PD connected)

• PERFORMANCE

• Switching Capacity 128 Gbps

• Packet Forwarding Rate 95.23 Mpps

• MAC Address Table 16 K

• Packet Buffer Memory 12 Mbit

• Jumbo Frame 9 KB

• SOFTWARE FEATURES

• Quality of Service

• 8 priority queues

• 802.1p CoS/DSCP priority

• Queue scheduling: SP (Strict Priority), WRR (Weighted Round Robin), SP+WRR

• Bandwidth Control: Port/Flow-based Rating Limiting

• Smoother Performance

• Action for Flows: QoS remark (802.1P Remark, DSCP Remark)

• L2 and L2+ Features

• 128 IP Interfaces: Support IPv4/IPv6 Interface

• Static Routing: 48 IPv4/IPv6 Static Routes

• Static ARP: 128 static entries

• 512 ARP Entries

• Proxy ARP

• Gratuitous ARP

• DHCP Server

• DHCP Relay: DHCP Interface Relay, DHCP VLAN Relay

• DHCP L2 Relay

• Link Aggregation

• Spanning Tree Protocol

• Loopback Detection

• 802.3x Flow Control

• Mirroring

• L2 Multicast

• Supports 1000 (IPv4, IPv6) IGMP groups

• IGMP Snooping

• IGMP Authentication

• Multicast VLAN Registration (MVR)

• MLD Snooping

• Multicast Filtering: 256 profiles and 16 entries per profile

• Advanced Features

• Automatic Device Discovery

• Batch Configuration

• Batch Firmware Upgrading

• Intelligent Network Monitoring

• Abnormal Event Warnings

• Unified Configuration

• Reboot Schedule

• ISP Features

• L2PT (Layer 2 Protocol Tunneling)

• Device Link Detect Protocol (DLDP)

• PPPoE ID Insertion

• ERPS

• 802.3ah Ethernet Link OAM

• DDM

• sFlow

• VLAN

• VLAN Group: Max 4K VLAN Groups

• 802.1q Tagged VLAN

• MAC VLAN: 30 Entries

• Protocol VLAN: Protocol Template 16, Protocol VLAN 16

• Private VLAN

• GVRP

• VLAN VPN: VLAN Mapping, VLAN Replace

• Voice VLAN

• Access Control List • Time-based ACL

• MAC ACL: Source MAC, Destination MAC, VLAN ID, User Priority, Ether Type

• IP ACL: Source IP, Destination IP, Fragment, IP Protocol, TCP Flag, TCP/UDP Port, DSCP/IP TOS

• Combined ACL

• Packet Content ACL

• IPv6 ACL

• Policy: Mirroring, Redirect, Rate Limit, QoS Remark

• ACL applies to Port/VLAN

• Security

• IP-MAC-Port Binding

• 512 Entries

• DHCP Snooping

• ARP Inspection

• IPv4 Source Guard: 100 Entries

• IPv6-MAC-Port Binding

• 512 Entries

• DHCPv6 Snooping

• ND Detection

• ND Snooping

• IPv6 Source Guard: 100 Entries

• DoS Defend

• DHCP Filter

• Static/Dynamic Port Security: Up to 64 MAC addresses per port

• Broadcast/Multicast/Unicast Storm Control: kbps/ratio/pps control mode

• 802.1X

• Port-based authentication

• Mac-base authentication

• VLAN Assignment

• MAB

• Guest VLAN

• Radius authentication and accountability support

• AAA (including TACACS+)

• Port Isolation

• Secure web management through HTTPS with SSLv3/TLS 1.2

• Secure Command Line Interface (CLI) management with SSHv1/SSHv2

• IP/Port/MAC-based access control

• IPv6

• IPv6 Dual IPv4/IPv6

• Multicast Listener Discovery (MLD) Snooping

• IPv6 ACL

• IPv6 Interface

• Static IPv6 Routing

• IPv6 neighbor discovery (ND)

• Path maximum transmission unit (MTU) discovery

• Internet Control Message Protocol (ICMP) version 6

• TCPv6/UDPv6

• IPv6 applications: DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP

• MIBs

• MIB II (RFC1213)

• Interface MIB (RFC2233)

• Ethernet Interface MIB (RFC1643)

• Bridge MIB (RFC1493)

• P/Q-Bridge MIB (RFC2674)

• RMON MIB (RFC2819)

• RMON2 MIB (RFC2021)

• Radius Accounting Client MIB (RFC2620)

• Radius Authentication Client MIB (RFC2618)

• Remote Ping, Traceroute MIB (RFC2925)

• Support TP-Link private MIB

• MANAGEMENT

• Omada App Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

• Centralized Management

• Omada Cloud-Based Controller

• Omada Hardware Controller

• Omada Software Controller

• Cloud Access Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

• Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller.

• Management Features

• Web-based GUI

• Command Line Interface (CLI) through console port, telnet

• SNMPv1/v2c/v3

• Trap/Inform

• RMON (1, 2, 3, 9 groups)

• SDM Template

• DHCP/BOOTP Client

• 802.1ab LLDP/LLDP-MED

• DHCP AutoInstall

• Dual Image, Dual Configuration

• CPU Monitoring

• Cable Diagnostics

• EEE

• Password Recovery

• SNTP

• System Log

• OTHERS

• Certification CE, FCC

• Package Contents

• SG3428XMPP Switch

• Power Cord

• Quick Installation Guide

• Rackmount Kit

• Rubber Feet

• System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.

• Environment

• Operating Temperature: 0–40 C (32–104 C);

• Storage Temperature: -40–70 C (-40–158 C)

• Operating Humidity: 10–90% RH non-condensing

• Storage Humidity: 5–90% RH non-condensing

• Váha: 4.40000 kg
• PartNumber: SG3428XMPP

Parametry produktu

PoE 802.3af:	PoE++
SFP:	Ano
Počet portů:	24
Rychlost přenosu:	10/100/1000
Výrobce:	TP-Link
Správa:	Managovatelný
GPSR:	TP-LINK Czech s.r.o.;Pekařská 10a,budova B,15500,Praha 5,Česká republika;sales.cz@tp-link.com
