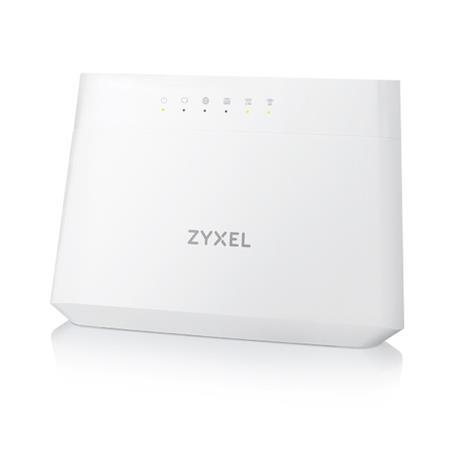

Zyxel VMG3625-T50B Dual Band Wireless 35b AC/N VDSL2 Combo WAN Gigabit Gateway

• The Zyxel VMG3625-T50B provides high-speed Internet access to meet the worldwide market requirements for triple-play services. Featuring the built-in 2x2 802.11ac WLAN function that relieves troublesome wirings, this model offers extreme coverage for great WiFi user experience. Moreover, the user-oriented design allows this model to meet every customer’s own style while providing powerful and practical functions.

• AC1200, dual-band WiFi with 867 Mbps* 802.11ac 2x2 Wave 2 technology

• TR-069 remote management (Data model: TR-098/TR-181)

• USB 2.0 high throughput for file sharing

• Excellent routing and QoS capability to prioritize applications as needed

• NAT, firewall with SPI and DoS for better security

• Stand-alone and wall mountable

• VDSL2 supports super vectoring up to profile 35b

• Benefits

• Ultra speed for UHD IPTV service

• The Zyxel VMG3625-T50B supports broadband access performance, which further enables operators to offer better UHD 4k IPTV services.

• The triple-play powerhouse

• The Zyxel VMG3625-T50B is built with sophisticated QoS and multicast traffic shaping features like IGMP v1/2/3 snooping and VLAN capabilities for premium video delivery services. To wireless IPTV operators, its built-in 2x2, 802.11ac chip is the top choice.

• Carrier-class WiFi for seamless mobility

• Rated as AC1200, the Zyxel VMG3625-T50B delivers speeds of up to 867 Mbps* over 5 GHz and 300 Mbps* over 2.4 GHz. For better user experience, four models offer dual-band, d WiFi with performance-boosting features such as Multi-User MIMO (MU-MIMO) and Beamforming for simultaneous, lag-free streaming and gaming experiences. In addition, its ability to create multiple WiFi networks with up to 4 SSIDs helps operators to easily create individual WLAN networks for video, data and guests.

• TR-069 remote management with TR-181 issue-2 support

• The Zyxel VMG3625-T50B supports TR-69 that simplifies remote configuration, upgrade and management and therefore improves cost effectiveness and customer satisfaction. Additional support to the latest TR-181 issue-2 data model also enhances service providers’ visibility on subscriber LAN networks for improved customer assistance.

• Wireless Standard

• 802.11 b/g/n/ac 2.4 GHz, data rate 300 Mbps

• 802.11 a/n/ac 5 GHz, data rate 867 Mbps

• Router/Bridge Features

• IEEE 802.1D transparent bridge & basic spanning tree

• PPPoE (RFC 2516)

• PPPoA (RFC 2364)

• MAC encapsulation routing/IPoE

• Network Address Translation (NAT)

• NAT virtual server (port forwarding)

• DHCP client/server/relay with DHCP option 43/60/61/125

• DNS proxy/dynamic DNS

• Static/Policy route

• IGMP v1, v2, v3

• IPv4/IPv6

• Wireless

• Wireless Protected Setup (WPS)

• WMM

• WPA2/WPA2-PSK with TKIP & AES

• Security type

• Multi SSID: up to 4

• MU-MIMO support

• VLAN/QoS

• 802.1Q VLAN tagging/un-tagging

• Support flexible traffic classification

• Firewall & Security

• Generic packet filter

• DoS attack prevention

• Parental control

• USB

• File sharing

• 3G back up with external 3G USB dongle

• Management

• Web/HTTP: 3 level log-in via SSH or Telnet

• Firmware upgrade via Web/TFTP/FTP/TR-069 RPC method

• Text based configuration

• Configuration backup/update/restore default via Web

• Configurable access control for remote management (interface and/port number)

• DSL forum TR-069, TR-098

• TR-111 and TR-181 i2

• SNMP v1, v2

• Rom-D support

• UPnP port forwarding rules on page

• VDSL

• G.993.1 VDSL

• G.993.2 VDSL2, Band 997, 998, Over POTS

• Support VDSL profiles: 8a/b/c/d, 12a/b, 17a, and 35b

• G.vector

• ADSL

• G.992.1 (G.dmt)

• G.992.2 (G.lite)

• ANSI T1.413 compliant

• G.992.3 (ADSL2)

• G.992.5 (ADSL2+)

• G.INP support

• Hardware Specifications

• WAN: One 10/100/1000 Mbps

• Ethernet port RJ-45

• Wireless:

• Two internal antennas (2.4 GHz)

• Two internal antennas (5 GHz)

• Interface Description

• Ethernet: four 10/100/1000 Mbps

• Ethernet ports RJ-45 (8P8C)

• USB: one USB 2.0 host

• DSL: one RJ-11

• Button

• One Power on/off button

• One reset button

• One WPS on/off button

• One WLAN on/off button

• Status LEDs indicators

• Power/System

• WAN

• Internet

• LAN

• WLAN-2.4G/WPS

• WLAN-5G/WPS

• Power Consumption

• 12 V DC/ 1.5 A

• Package Content

• Wireless IAD

• Power adapter

• Ethernet cable

• Quick start guide

• Safety warning card

• Váha: 0.60000 kg
• PartNumber: VMG3625-T50B-EU02V1F

Parametry produktu

Výrobce:	ZyXEL
Rychlost přenosu Wi-Fi:	300Mbps (802.11n)
Pásmo:	2,4 GHz + 5 GHz dual
Podpora PoE:	Ne
Výrobce:	ZyXEL
Typ:	VDSL
Wi-Fi:	vyšší 802.11n
Rychlost ethernetu:	10/100 Mbit
VPN:	Ano
Wi-Fi:	Ano
GPSR:	Zyxel Networks A/S;Gladsaxevej 378,2860,Soborg,Denmark;info@cz.zyxel.com
