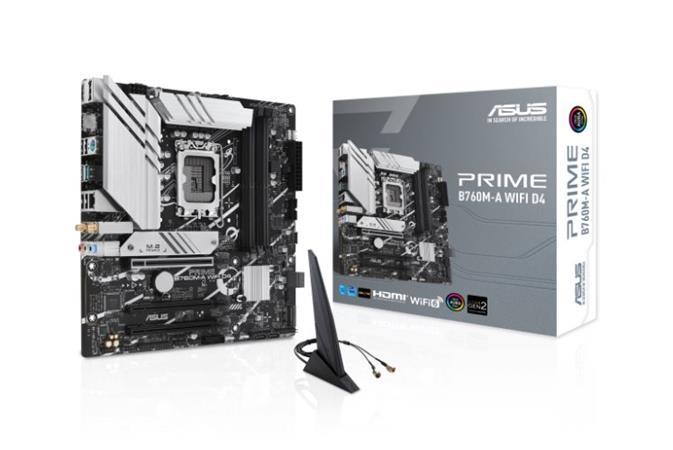

ASUS PRIME B760M-A WIFI D4 + doprava zadarmo

• Intel® B760 (LGA 1700) mATX motherboard, PCIe 4.0, two M.2 slots, Realtek 2.5Gb Ethernet, Wi-Fi 6, DisplayPort, Dual HDMI®, SATA 6 Gbps, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C®, Aura Sync

• Intel® LGA 1700 Socket: Ready for 13th and 12th Gen Intel® processors

• Ultrafast Connectivity: PCIe 4.0, two M.2 slots, Realtek 2.5Gb Ethernet, Wi-Fi 6, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C®

• Comprehensive Cooling: VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+

• ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking

• Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware

• Model

• PRIME B760M-A WIFI D4

• CPU

• Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*

• Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

• *Refer to www.asus.com for CPU support list.

• ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

• Chipset

• Intel® B760 Chipset

• Memory

• 4 x DIMM, Max. 128GB, DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*

• Dual Channel Memory Architecture

• Supports Intel® Extreme Memory Profile (XMP)

• OptiMem II

• * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.

• Graphics

• 1 x DisplayPort**

• 2 x HDMI® ports***

• * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.

• ** Supports max. 4K@60Hz as specified in DisplayPort 1.4.

• *** Supports 4K@60Hz as specified in HDMI® 2.1.

• Expansion Slots

• Intel® 13th & 12th Gen Processors

• 1 x PCIe 4.0 x16 slot

• Intel® B760 Chipset

• 1 x PCIe 4.0 x16 slot (supports x4 mode)

• 1 x PCIe 4.0 x16 slot (supports x1 mode)

• Note: To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

• Storage

• Total supports 2 x M.2 slots and 4x SATA 6Gb/s ports*

• Intel® 13th & 12th Gen Processors

• M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

• Intel® B760 Chipset

• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

• 4 x SATA 6Gb/s ports

• * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.

• Ethernet

• 1 x Realtek 2.5Gb Ethernet

• Wireless & Bluetooth

• Wi-Fi 6

• 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)

• Supports 2.4/5GHz frequency band

• Bluetooth v5.2

• * The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

• USB

• Rear USB (Total 6 ports)

• 2 x USB 3.2 Gen 2 ports (2 x Type-A )

• 4 x USB 2.0 ports (4 x Type-A)

• Front USB (Total 10 ports)

• 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports

• 1 x USB 3.2 Gen 1 connector (supports USB Type-C®)

• 2 x USB 2.0 headers support 4 additional USB 2.0 ports

• 1 x USB 2.0 header supports 1 additional USB 2.0 port

• Audio

• Realtek 7.1 Surround Sound High Definition Audio CODEC*

• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

• Supports up to 24-Bit/192 kHz playback

• Audio Features

• Audio Shielding

• Premium audio capacitors

• Dedicated audio PCB layers

• * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

• Back Panel I/O Ports

• 2 x USB 3.2 Gen 2 ports (2 x Type-A )

• 4 x USB 2.0 ports (4 x Type-A)

• 1 x DisplayPort

• 2 x HDMI® ports

• 1 x Wi-Fi Module

• 1 x Realtek 2.5Gb Ethernet port

• 3 x Audio jacks

• 1 x PS/2 Keyboard/Mouse combo port

• Internal I/O Connectors

• Fan and Cooling related

• 1 x 4-pin CPU Fan header

• 1 x 4-pin CPU OPT Fan header

• 2 x 4-pin Chassis Fan headers

• Power related

• 1 x 24-pin Main Power connector

• 1 x 8-pin +12V Power connector

• Storage related

• 2 x M.2 slots (Key M)

• 4 x SATA 6Gb/s ports

• USB

• 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports

• 1 x USB 3.2 Gen 1 connector (supports USB Type-C®)

• 2 x USB 2.0 headers support 4 additional USB 2.0 ports

• 1 x USB 2.0 header supports 1 additional USB 2.0 port

• Miscellaneous

• 3 x Addressable Gen 2 headers

• 1 x Aura RGB header

• 1 x Clear CMOS header

• 1 x COM Port header

• 1 x Front Panel Audio header (AAFP)

• 1 x LPT header

• 1 x S/PDIF Out header

• 1 x SPI TPM header (14-1pin)

• 1 x 20-3 pin System Panel header with Chassis intrude function

• Special Features

• ASUS 5X PROTECTION III

• DIGI+ VRM

• LANGuard

• Overvoltage Protection

• SafeSlot Core+

• Stainless-Steel Back I/O

• ASUS Q-Design

• Q-DIMM

• Q-LED Core

• Q-Slot

• ASUS Thermal Solution

• M.2 heatsink

• VRM heatsink design

• ASUS EZ DIY

• ProCool

• Aura Sync

• Aura RGB header

• Addressable Gen 2 headers

• Software Features

• ASUS Exclusive Software

• Armoury Crate

• Aura Creator

• Aura Sync

• Fan Xpert 2+

• Power Saving

• AI Suite 3

• Digi+ VRM

• PC Cleaner

• ASUS CPU-Z

• MyAsus

• Norton Deluxe (60 Days Free Trial)

• WinRAR

• UEFI BIOS

• ASUS EZ DIY

• ASUS CrashFree BIOS 3

• ASUS EZ Flash 3

• ASUS UEFI BIOS EZ Mode

• BIOS

• 128 Mb Flash ROM, UEFI AMI BIOS

• Manageability

• WOL by PME, PXE

• Accessories

• Cables

• 2 x SATA 6Gb/s cables

• Miscellaneous

• 1 x ASUS Wi-Fi moving antennas

• 1 x I/O Shield

• 1 x M.2 Rubber Package

• 1 x Screw package for M.2 SSD

• Documentation

• 1 x User guide

• Operating System

• Windows® 11, Windows® 10 64-bit

• Form Factor

• mATX Form Factor

• 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )

• Váha: 1.20000 kg
• PartNumber: 90MB1CX0-M1EAY0

Parametry produktu

GPSR:	ASUS COMPUTER GmbH;HARKORT STR. 21-23,40880,RATINGEN,GERMANY;qr.asus.com/productsafety
Socket/patice:	1700
Typ paměti:	DDR4
Výrobce:	Asus
